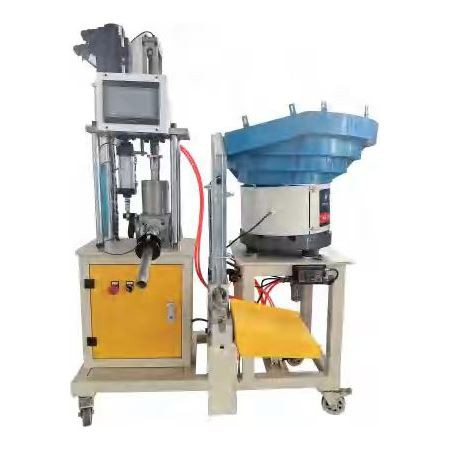

Single Cylinder Sealant Filling Machine
This Single cylinder sealant filling machine is a new type of semi-automatic glass glue cartridge packaging (plastic bottle) filling equipment. The machine consists of servo-controlled filling and automatic capping, enabling one or two operators to complete the filling process of glass glue/sealant with high accuracy, fast speed, stable and reliable performance. It is mainly used for packaging sealant products such as glass glue, silicone, and acrylic adhesives into plastic cartridges and aluminum tubes. The operation is simple, making it an ideal choice for sealant manufacturers.
Main Functions
- Display screen setting with quantitative adjustment function;
- Automatic bottom cap feeding;
- Automatic bottom cap pressing;
- Automatic counting;
- Complete fault alarm and protection functions;
- User-friendly Chinese display and human-machine interface.
Technical Parameters of the Filling Machine
- Filling volume: 260 ml – 310 ml;
- Filling speed: 30–60 pcs/min, depending on operator skill level;
- Filling accuracy: ±2 g;
- Installed power: 3.8 kW (AC 380V, 50 Hz);
- Overall dimensions: 1200 (L) × 950 (W) × 1650 (H) mm;
- Weight: approx. 280 Kg.
FAQ
Q: Does the machine handle bottom caps automatically?
A: Yes, it features automatic bottom cap feeding and pressing.
